INTELLIGENT CLOUD PLATFORM
Real-time monitoring of all slots
Remote diagnostics and control
Automatic alarm notifications
Usage data analytics and reporting
ADVANCED POWER MANAGEMENT
Precision current/voltage monitoring
Per-slot energy consumption tracking
Dynamic load balancing
SAFETY PROTECTIONS
Auto-stop at full charge (≥95% efficiency)
Over-current/voltage protection
Fire-resistant enclosure (IP54 rated)
VIDEO VERIFICATION SYSTEM
Tamper-proof operation recording
Transaction authenticity confirmation
Security incident documentation
ENVIRONMENTAL ADAPTABILITY
Built-in heater (0-40°C activation)
Forced air cooling system
Coastal operation ready (salt-spray resistant)
| Parameter | Specification |
|---|---|

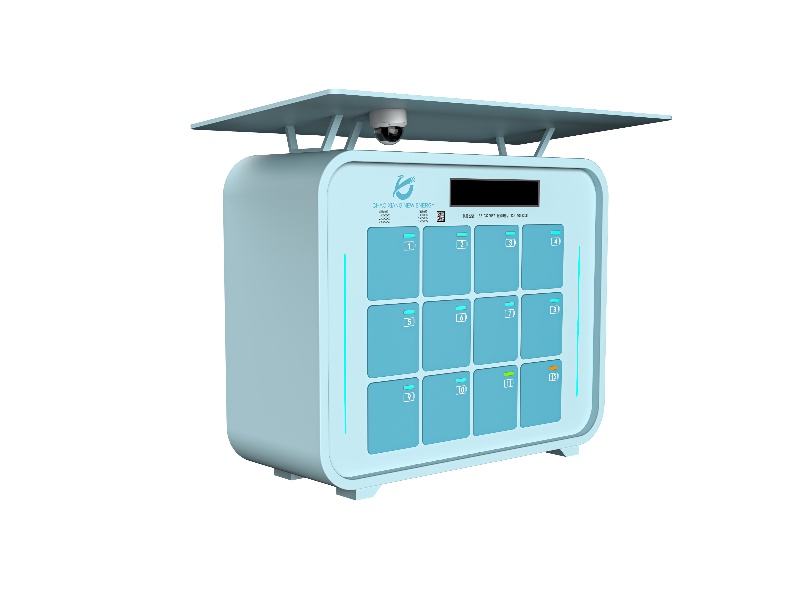

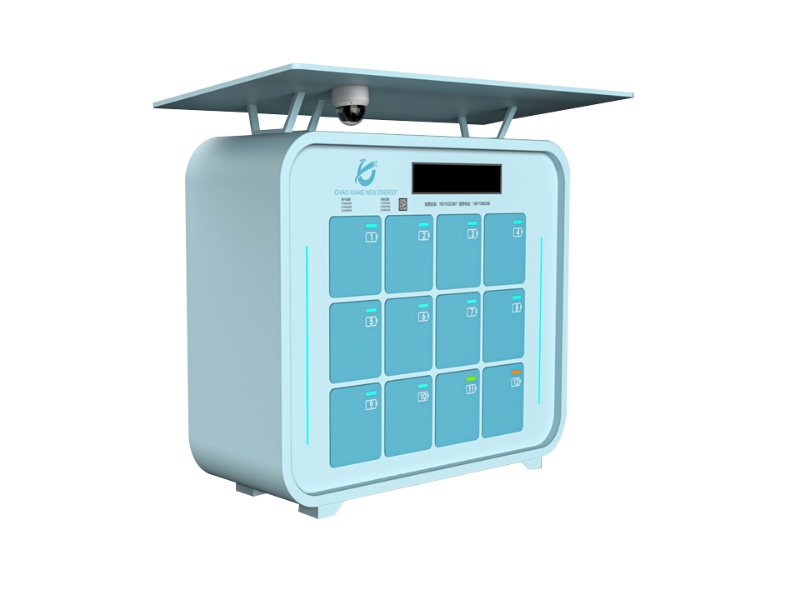

| Models | CX-03CC (3-slot) / CX-12HA (12-slot) |
| Dimensions (W×D×H) | CX-03CC: 1000×600×1500mm CX-12HA: 1700×1470×500mm |
| Input Voltage | AC 220V ±20% |
| Input Frequency | 50Hz ±5Hz |
| Max. Total Power | 6000W |
| Max. Power per Slot | 750W |
| Charging Current | 0-15A (adjustable per slot) |
| Charging Voltage | 40-90V (wide range) |
| Battery Compatibility | 45-72V Lithium Batteries |
| Cooling Method | Forced Air Cooling |
| Protection Rating | IP54 |
| Heating System | Integrated Heater |
| Heating Temp. Range | 0°C to 40°C |
| Communication | Ethernet + 4G |
| Operating Temp. | -20°C to 50°C |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Max. Altitude | ≤2000m |
| Atmospheric Pressure | 80-110 kPa |
| Factor | Requirement |
|---|---|
| Air Quality | Free from acidic/alkaline/corrosive gases |
| Humidity Control | Maintain specified RH range |
| Safety Measures | Lightning protection required |
| Fire Prevention | Install fire suppression systems |
| Storage | Use dry bubble wrap for components |
